Reclaim the Space Below
Under-deck waterproofing turns the wasted space below a second-story deck into a covered, usable patio. An open deck is a drippy roof: every rain, and every time you wash the boards, sends water, pollen, and grit straight through the gaps onto whatever sits below, which is why that space stays muddy and unfurnished. A drainage system installed above or beneath the joists intercepts that water before it falls, channels it into a hidden gutter, and routes it away from the house. The result is a covered room underneath the deck, with most rainwater carried away, that effectively doubles your outdoor living area without touching your footprint.
That square footage matters most where it is hardest to get. In Arlington, Alexandria, and McLean, setback lines and impervious-surface limits often make expanding outward impossible, so building down and under the deck is the practical way to add covered space. Tuck GC converts those muddy under-deck areas into finished outdoor rooms with drainage ceilings, recessed lighting, and integrated fans.
1. The Diagnostic: The Threat of Hidden Rot
Waterproofing under a deck protects the deck's structure, not just the furniture below it. The common DIY mistake is closing in the underside with plywood or vinyl siding, which seals moisture between the deck boards and the new ceiling instead of draining it. Pressure-treated joists are rated for above-grade exposure where they can dry between wettings; trap them in a damp, unventilated cavity and they rot from the inside out, the fasteners corrode, and the frame loses capacity long before the surface shows it. In the humid summers around Fairfax Station and Clifton, that standing dampness feeds mold and draws termites to wood that is already softening.
The other failure point is the ledger board, where the deck attaches to the house. If it is not flashed correctly before a ceiling goes up, captured water can wick backward toward the wall, get behind the siding, and rot the rim joist inside the home, which is the same connection responsible for the deck collapses that drive Virginia's inspection requirements. A proper system manages water flow and still lets the wood frame breathe, which is exactly what off-the-shelf paneling cannot do.
2. The Tuck Standard Protocol: System Selection & Integration
Two methods dominate, and which one fits depends on whether we are building a new deck or retrofitting an existing one. We install both:
- Over-Joist Bladder Systems (Trex RainEscape) The stronger option, but only available during a new deck build. Before the decking goes down, we install UV-stabilized polymer troughs over the top of the floor joists. The troughs drape into the joist bays and catch water the moment it passes the deck boards, channeling it to a hidden gutter at the rim joist. Because the system carries water away before it reaches the framing, the joists stay drier, which helps the wood last longer. With most rainwater carried away, the ceiling can be finished in almost anything, from beadboard to mahogany — it's water mitigation, not absolute waterproofing, and extreme storms can overwhelm any drainage system (see The Tuck Standard, Section 10).

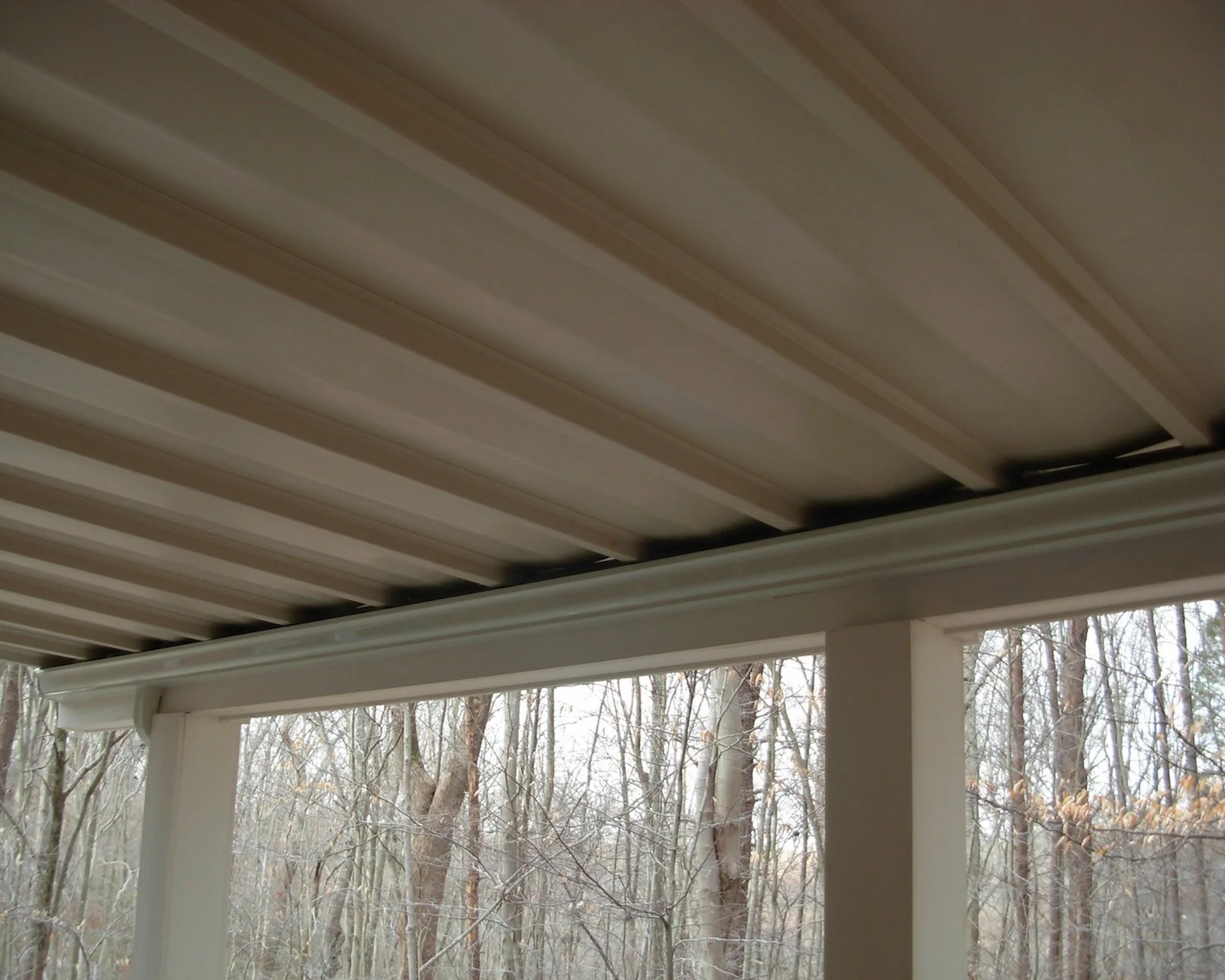

- Under-Joist Panel Systems (DrySpace / Zip-Up) The retrofit path for a sound existing deck when you do not want to pull the boards. We hang a pitched framework of heavy-gauge vinyl or aluminum panels on the underside of the joists. The interlocking panels are both the drainage layer and the finished ceiling, catching water after it falls through the joists and carrying it to a gutter. The tradeoff is that water still touches the framing on the way down, so the joists are protected only partially, not fully. These systems work well for retrofits in Burke and Springfield.
- Integrated Gutter & Downspout Routing Catching the water is only half the job; moving it off the lot is the rest. Whatever the drainage system collects feeds a gutter along the deck's outer edge, with downspouts down the support columns and the discharge carried away from the foundation rather than dumping at its base — gutters and discharge as scoped in your contract.
- Electrical Rough-Ins A covered space under the deck is an outdoor room, so it gets wired like one. Before the ceiling is closed in, the licensed electrical trades we coordinate rough in conduit for outdoor-rated ceiling fans that move the humid Virginia air, recessed LED lighting, and dedicated outlets for a television or patio heater. All electrical is permitted and inspected as required.
- Column Wrapping & Structural Aesthetics To finish the transition from "under a deck" to "lower patio," we wrap the bare pressure-treated support posts in Cellular PVC trim or custom stone veneer so the space reads as an extension of the house.
3. Material Science: Over-Joist vs. Under-Joist Systems
| System Type | Installation Timing | Joist Protection | Ceiling Finish Options |
|---|---|---|---|
| Over-Joist Bladder (Trex RainEscape) | Must be installed during new deck build. | Strongest protection. Water is intercepted above the joists before it reaches the framing. | Unlimited (Wood, PVC, Beadboard, etc.). |
| Under-Joist Panel (Zip-Up / DrySpace) | Can be retrofitted onto existing decks. | Partial. Water hits joists before hitting panels. | The panels themselves are the final ceiling finish. |
| Corrugated Metal (DIY Method) | Often attempted as cheap retrofits. | Traps moisture; accelerates severe wood rot. | Industrial, loud during rainstorms, prone to rust. |
4. The Northern VA Factor: HOA Approvals and Foundation Health
On the tight lots in Vienna, Arlington, and Alexandria, where the system sheds its water is as important as where it catches it. A drainage system concentrates what used to fall in a diffuse sheet into a single discharge point; route that point poorly and a summer thunderstorm dumps hundreds of gallons against the foundation wall, where it builds hydrostatic pressure, finds basement cracks, and saturates the soil that supports the footing. With 20+ years of hands-on experience building drainage and stormwater systems, Tuck GC plans the discharge route as part of the install, as scoped in your contract, and on projects that call for a stamped drainage design we coordinate that work with licensed civil and geotechnical engineers. Drainage is water mitigation, not a waterproofing guarantee.
Appearance matters too. In master-planned communities like Gainesville, Bristow, and Haymarket, the underside of a second-story deck is visible from the golf course, the trails, and the neighbors, and Architectural Review Boards routinely reject exposed joists on a rear elevation. A clean Zip-Up ceiling or finished beadboard system is what boards typically look for, and it tightens up the back of the house at the same time. HOA approval is the homeowner's application; we support it with the drawings, cut-sheets and specs the board asks for.
5. What Drives the Cost of Under-Deck Waterproofing in Fairfax & Arlington
The cost of an under-deck drainage system tracks with the square footage of the deck above and, above all, which system the project calls for. An over-joist bladder system like Trex RainEscape installs during a new deck build and intercepts water above the joists, before it reaches the framing; an under-joist panel system like Zip-Up or DrySpace retrofits onto an existing deck without removing the boards. Those are different scopes at different price points. The membrane is only part of it — the gutter and discharge work around it adds up: the gutters, downspouts, and discharge scoped in your contract, which matter most on the tight lots in Arlington and Alexandria, where run-off needs to be carried away from the foundation. Finish work pushes the number further: recessed LED lighting, outdoor ceiling fans, electrical rough-ins, and Cellular PVC or stone column wraps. A standalone drainage system is usually a finish upgrade, but any structural work to the frame, ledger, or new columns triggers a permit and inspection.
Because every under-deck waterproofing project is scoped to your property, we price each one individually rather than by a flat rate. You'll find our project minimum and a full breakdown of what different budgets cover on our contact page.
See Our Full Pricing Breakdown6. Under-Deck Waterproofing FAQ
Yes. We utilize an Under-Joist Panel System (like Zip-Up or DrySpace) for retrofits. The interlocking vinyl or aluminum panels are pitched and mounted to the bottom of your existing joists. However, we look over the exposed frame for rot first, as the new ceiling will hide the joists from future view; if we find rot or damage, we show you and price the repair by Change Order before closing it in.
Over-joist bladder systems (like Trex RainEscape) are pitched so that water washes much of the debris toward the gutter, as the manufacturer describes. For under-joist panel systems, the panels are designed to be easily unzipped or un-snapped in specific sections, allowing you to access the hidden gutter for annual cleaning with a hose or pressure washer.
It will block ambient light that previously filtered through the deck boards. To counter this, we highly recommend integrating recessed LED lighting into the new ceiling. Using bright, white finishes (like white PVC or vinyl panels) also helps reflect natural light deeper into the patio space.
A standalone under-deck drainage and ceiling system is typically a finish upgrade and may not require a permit on its own, but any structural work to the deck frame, ledger, or new support columns does require a local building permit and inspection from your county or city building department. We confirm the requirements for your specific jurisdiction before any framing work begins.
Our installation is covered by a 1-year Virginia workmanship warranty. The drainage components themselves carry the manufacturer's own product warranty, such as Trex RainEscape's product warranty on the bladder material, on terms the manufacturer sets; we hand off the product information at completion so you can register it with the manufacturer.
7. Maximize Your Square Footage
The space under your deck does not have to stay a dark, muddy afterthought. Whether the goal is covered, lockable under-deck storage in Lake Ridge or a fully wired outdoor lounge in McLean, Tuck GC builds the under-deck waterproofing system that protects the framing first and finishes the room second. It is one part of our Decks & Porches work across Northern Virginia.
